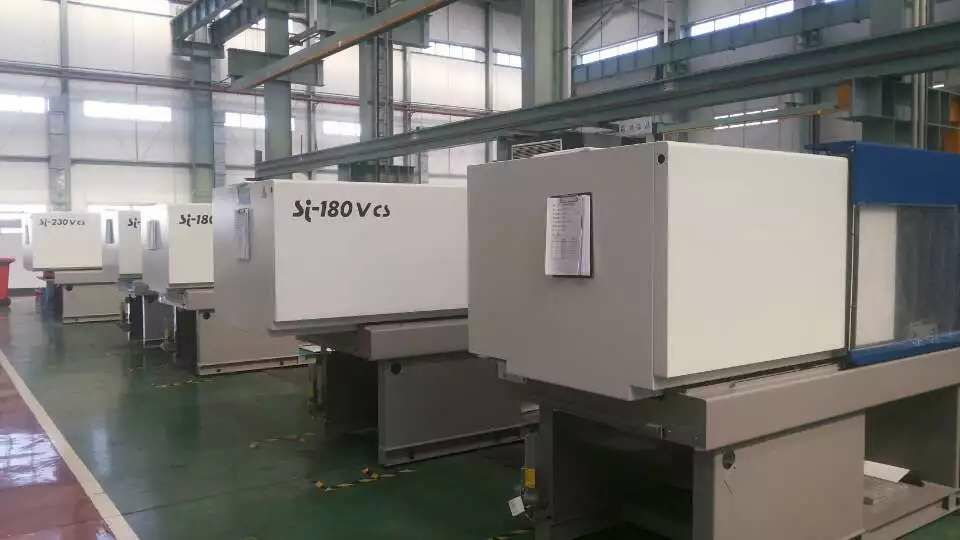

东洋180吨二手卧式注塑机参数
螺杆直径mm :36,40,45 ,40,45 ,45,50,55
注塑重量g
PS:145,180,230,208,263,292,361,437
PE :115,145,185,165,209,232,286,346
最大注塑压力(Max.)
MPa:247 ,200,158,253 ,200,247 ,200,165
kgf/cm2:2510 ,2040,1610 ,2580 ,2040 ,2510 ,2040,1680
标准mm/s:200,160
注塑速度标准mm/s:200,160;高速规格mm/s:350,300
塑化能力(Ps)标准kg/h :83 ,110,120 ,110 ,120 ,120,160,190
锁模力KN(t):1760(180)
拉杆间距(HxV)mm:560×510
锁模行程mm:450
模板间距(Max)mm:1050(*990(**1030))
机械尺寸m
L5.7,5.9,6.0
w1.5,1.5,1.5
H1.9,1.9,1.9
